Trailer Mounted Fire Fighting Pumps

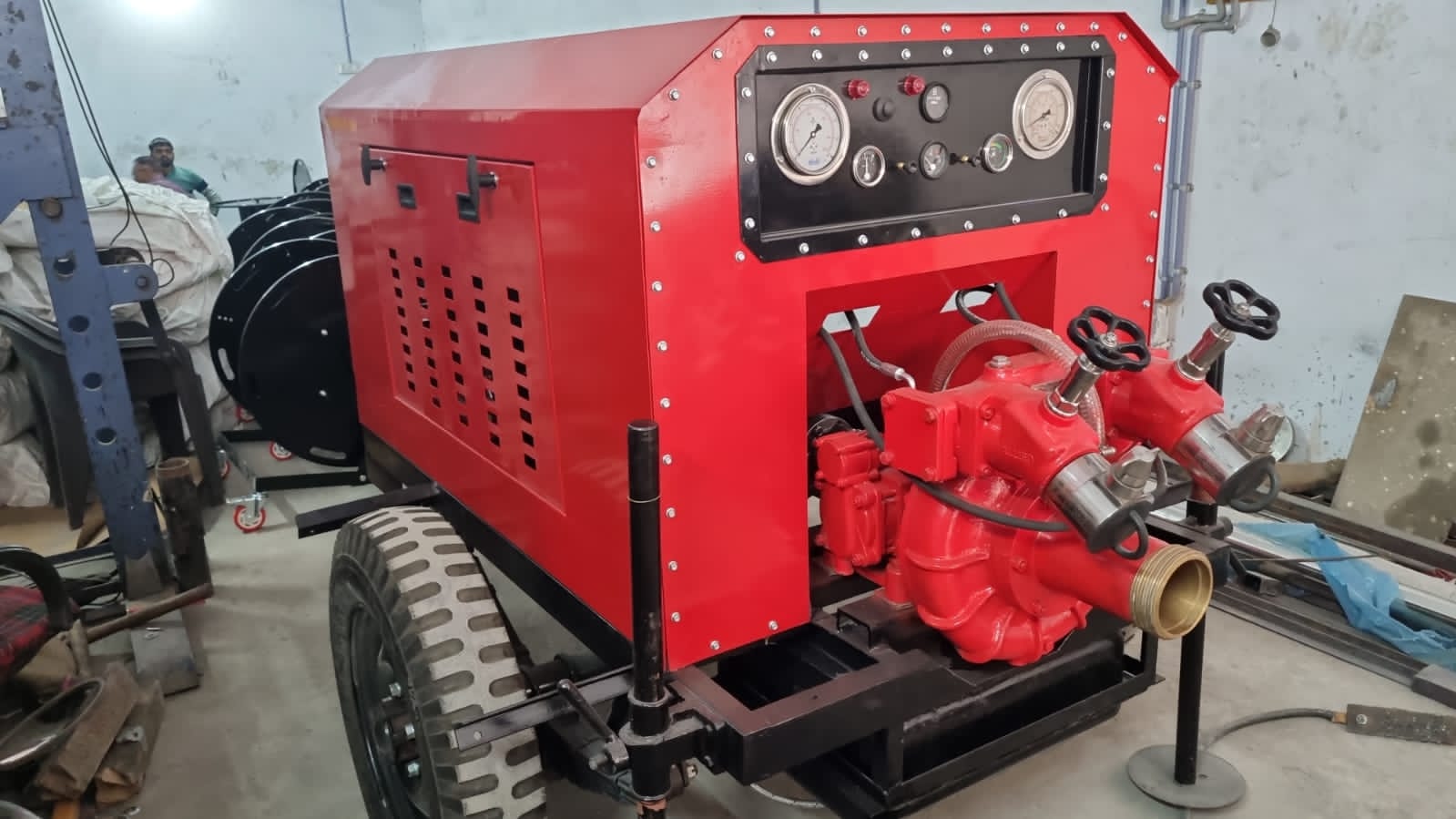

USAFE Fire trailer pumps are small, portable fire pumps that are typically mounted on a trailer. They are oŌen used by firefighters in rural areas or in areas where there is no access to a hydrant. Fire trailer pumps can be powered by a diesel engine. Fire trailer pumps are typically equipped with a pump, a hose reel, and a discharge nozzle. The pump is used to draw water from a source, such as a pond, a lake, or a swimming pool. The hose reel is used to connect the pump to a hose, and the discharge nozzle is used to direct the water stream towards the fire. USAFE Trailer Fire fighƟng pump unit, 1800 LPM capacity @ 7.0 kgf/cm2, consisƟng of MAHINDRA, 58 HP Diesel en‐ gine, 3200 rpm (or equivalent), coupled to Gunmetal single stage, centrifugal pump, and provided with an exhaust ejector primer. Pump inlet is 4” MRT, while outlets are 2 x 2.5” Inst. Female adaptor. Pump Control Panel would be provided.
| 1.0 GENERAL DATA | |
|---|---|
| 1.1 Make | USAFE Trailer pump |
| 1.2 Engine Model | MAHINDRA, Diesel (HSD), 58 HP, 3200 rpm, Air cooled (or equivalent) |
| 1.3 Pump Model | 1800 lpm @ 7.0 kgf/cm2, Centrifugal pump, Single stage |
| 1.4 Inlet | 4.0 ” MRT |
| 1.5 Outlet | 2 Nos. x 2.5” Female Instantaneous adaptor |
| 1.6 Reference Standard | IS:944 |
| 2.0 MATERIAL OF CONSTRUCTION | |
| 2.1 Pump Volute | Gunmetal, IS:318 LTB2 |
| 2.2 Pump impeller | Gunmetal, IS:318 LTB2 |
| 2.3 Trailer | Carbon (Mild) Steel Channels/Angles |
| 2.4 Pump seal | Mechanical Carbon seal |
| 2.5 Ejector Primer | Gunmetal, IS:318 LTB2 |
| 3.0 TESTING AND QUALITY CONTROL | |
| 3.2 Performance Requirements | H.P. tesƟng of Pump body at 25 kgf/cm2 for 2.5 minutes To meet flow & output requirements- 1800LPM @ 7.0 kgf/cm2 & other operaƟonal requirements as per IS:944 |
| 4.0 OPERATIONAL/ TECHNICAL DATA | |
| 4.1 Working pressure range | 0 to 8.0 Kg/cm2 |
| 4.2 Priming System | Exhaust Ejector, Manual |
| 4.3 Equipment/Accessories | As per IS:944 |
| 5.0 FINISH | |
| 5.1 Pump body | Painted (P.O. Red colour) |
| 5.2 Trailer/Engine Cover Panels | Painted (P.O. Red colour) |
| 7.0 WARRANTY | |
| 7.1 Warranty & Guarantee | 12 Months from the date of supply |
